  • Certified according to EU Regulation 185/2010 for the inspection of letters and parcels
  • Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
  • Detection of detonators, batteries, electrical trigger circuits and other metal components of parcel bombs
  • Discrimination of metal staples, paper-clips and other metal elements normally to be found in the post
  • Confirmation of analysis result (OK/ALARM) for each package inspected
  • No calibration or maintenance required
  • Optional incorporated detector of radioactive substances and materials
  • Ergonomic, compact design
  • Operates on the mains and with built-in NiMH rechargeable batteries
  • Integrated battery charger

Click To View GB Brochure
Click To View F Brochure
Click To View I Brochure
Click To View JP Brochure

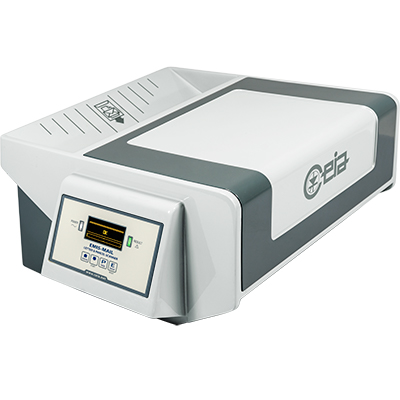

Letter Bomb and IED Detector for mail and parcel inspection


General characteristics

  • High inspection speed
  • No alarm on metal staples, paper-clips and metal binding spirals
  • Very high discrimination of paper-clips, metal staples and binding spirals
  • Digital programming with high-resolution OLED graphic display
  • Optical and acoustic alarm signalling
  • Integrated autodiagnosis system
  • Permanent memory storage of operating parameters without back-up batteries
  • Independent operation, with mains power supply or batteries (optional)
  • Specific Settings available for Prison parcels inspection (Dept. of Justice applications)
  • Compliant with NIJ-0602.02 Dept. of Justice Detection requirements
  • Transit opening 450 mm x 75 mm
  • Degree of protection IP40
  • 450 mm x 565 mm x 250 mm
  • 16 kg
Power supply
  • Voltage 100-240 V~ single-phase – 50-60 Hz with external AC/DC adapter
  • Current 1.07 A max
  • Battery operation (optional)
    • 6 x 1.2V NiMH size D
    • Battery life: 12 hours
    • Battery-charger incorporated: Recharging time 6 hours
  • Type
    • Local: via integrated keypad
    • Remote: via BT wireless communication, RS232
  • Memory capacity: 10.000 events
  • Acoustic: Internal buzzer
  • Optical

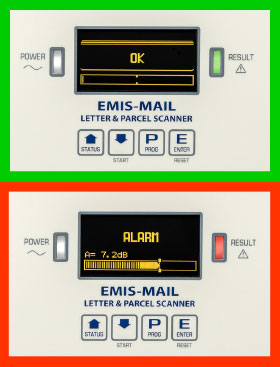

    • High-contrast OLED graphic display with bar-graph indication
    • LED indicators on the control panel
      • RED: Alarm, Autodiagnosis
      • GREEN: OK, Power supply
      • BLUE: Alarm, detection of radioactive substances
  • Access to programming protected by password
  • Galvanic insulation from mains voltage
  • Incorporated BT wireless communication interface, RS232
Environmental data
  • Operating Temperature: -10 to +50 °C
  • Storage Temperature: -25 to +60 °C
  • Relative humidity: 5 to 90 %, without condensation
Conformity (Test Reports available upon request)
  • Safety
    • EN61010-1
    • ACGIH, 2014 Threshold Limit Value (TLV)
    • IEEE C95.1-2005
    • EC-Rec. 1999/519/EC
    • EN 50364:2010
  • EMC
    • EN61000-6-1
    • EN61000-6-3
  • RED
    • EN300330: Short Range Devices (SRD)
NATO stock number
  • 6665150105807





Click To View GB Brochure
Click To View F Brochure
Click To View I Brochure
Click To View JP Brochure

CE Certificate
Human Exposure Certificate

Dibujos técnicos
Technical Drawings
