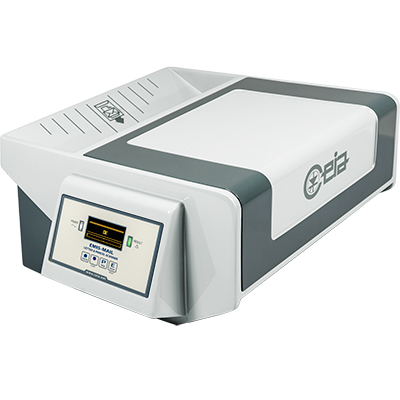

EMIS-MAIL

General characteristics

• Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
• Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
• No alarm on metal staples, paper-clips and metal binding spirals
• High inspection speed
• No alarm on metal staples, paper-clips and metal binding spirals
• Very high discrimination of paper-clips, metal staples and binding spirals
• Digital programming with high-resolution OLED graphic display
• Optical and acoustic alarm signalling
• Integrated autodiagnosis system
• Permanent memory storage of operating parameters without back-up batteries
• Independent operation, with mains power supply or batteries (optional)
• Specific Settings available for Prison parcels inspection (Dept. of Justice applications)
• Compliant with NIJ-0602.02 Dept. of Justice Detection requirements

Structure

• Transit opening 450 mm x 75 mm
• Degree of protection IP40

Dimensions

• 450 mm x 565 mm x 250 mm

Weight

• 16 kg

Power supply

• 100-277 V~±10%, 47-63Hz with external AC/DC adapter
• Current 1.3 A max
• Battery operation (optional)
  • 6 x 1.2V NiMH size D
  • Battery life: 12 hours
  • Battery-charger incorporated: Recharging time 6 hours

Programming

• Type
  • Local: via integrated keypad
  • Remote: via BT wireless communication, RS232
• Memory capacity: 10.000 events

Signalling

• Audible: Internal buzzer
• Visual

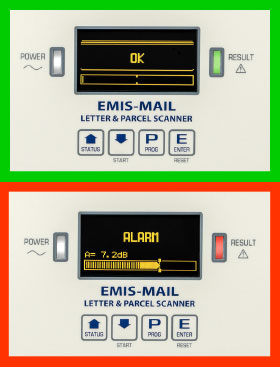

  • High-contrast OLED graphic display with bar-graph indication / zone location (pinpointing)
  • LED indicators on the control panel
    • WHITE: Power supply
    • RED: Alarm, Autodiagnosis
    • GREEN: OK, Power supply
    • BLUE: Alarm, detection of radioactive substances

Security/safety

• Access to programming protected by password
• Galvanic isolation: operates on Low DC voltage

Communication

• Incorporated BT wireless communication interface, RS232

Environmental data

• Operating Temperature: -10 to +50 °C
• Storage Temperature: -25 to +60 °C
• Relative humidity: 5 to 90 %, without condensation

Conformity (Test Reports available upon request)

• Safety
  • EN61010-1
  • ACGIH, 2014 Threshold Limit Value (TLV)
  • IEEE C95.1-2005
  • EC-Rec. 1999/519/EC
  • EN 50364:2010
• EMC
  • EN61000-6-1
  • EN61000-6-3
• RED
  • EN300330: Short Range Devices (SRD)

NATO stock number

• 6665150105807

Los dispositivos EMIS-Mail están diseñados para ser utilizados en:

• los Edificios Gubernamentales
• las Misiones Diplomáticas
• las Autoridades Públicas
• las Infraestructuras Esenciales
• las Salas de correo de las Empresas Privadas

Para el control de seguridad de:

• las Letras
• los Paquetes
