SECURITY Detection


EMIS®-MAIL

Mail scanner for the detection of letter bombs and IEDs in small parcels


Certified by Governmental Laboratories





Company Presentation








Visit us at
IAVM Venue Connect Annual Conference and Trade Show
Atlanta, GA - United States of America
Aug 2 - 5, 2021
Exhibitor: CEIA USA Ltd.

FCCD - Florida Council on Crime & Delinquency
Orlando, FL - United States of America
Aug 23 - 25, 2021
Exhibitor: CEIA USA Ltd.

Global Security Exchange GSX
Orlando, FL - United States of America
Sep 27 - 29, 2021
Exhibitor: CEIA USA Ltd.

See upcoming events >>

  • Automatic inspection of parcels and letters up to 18” in width and 3” thickness
  • Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
  • No alarm on metal staples, paper-clips and metal binding spirals
  • Ergonomic, compact design
  • Confirmation of signal (OK/ALARM) for each package inspected
  • Operates on mains power supply and with NiMH rechargeable batteries (opt.)
  • No calibration or periodic maintenance required
  • Integrated battery charger
  • Optional embedded radioactive material detector

Brochure
Click To View US Brochure

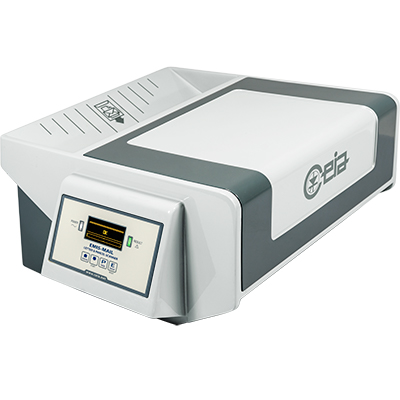

EMIS<sup>&reg;</sup>-MAIL

Mail scanner for the detection of letter bombs and IEDs in small parcels

Description

EMIS<sup>&reg;</sup>-MAIL - detail

Easy installation and use

The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.

The EMIS®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.

The EMIS®-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS®-MAIL is also compliant with the NIJ-0602.02 Department of Justice Detection requirement standard.

Key features of the CEIA EMIS®-MAIL include:

  • Ease of Installation and Setup
  • Ease and Speed of System Use with Limited Screener Training Required
  • Automatic Inspection of Parcels and Letters up to 18” Wide and 3” Thick
  • No Calibration or Periodic Maintenance Required
  • Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries

Specifications

Download Specifications



Key features

  • High inspection speed
  • No alarm on metal staples, paper-clips and metal binding spirals
  • Digital programming with high-resolution OLED graphic display
  • Visual and audible alarm signalling
  • Built-in Self-Test System
  • Permanent memory storage of operating parameters without back-up batteries
  • Independent operation, with mains power supply or batteries (opt.)
  • Specific Settings available for Prison parcels inspection (Dept. of Justice requirements)
  • Compliant with NIJ-0602.02 Dept. of Justice Detection requirements


Structure

  • Transit opening: 18” x 3”
  • Degree of protection: IP40


Dimensions

  • 18.1” x 22” x 10” (WxDxH)


Weight

  • 35 lbs


Power supply

  • Voltage: 100-277 V~±10%, 47-63Hz with external AC/DC adapter
  • Current: 1.3 A max
  • Battery operation (optional)
    • 6 x 1.2V NiMH size D
    • Battery life: 12 hours
    • Battery-charger incorporated: recharging time 6 h


Programming

  • Type
    • Local: via integrated keypad
    • Remote: via Bluetooth, RS232
  • Data Logger Memory capacity: 10.000 events


Signalling

  • Audible
    • Internal buzzer

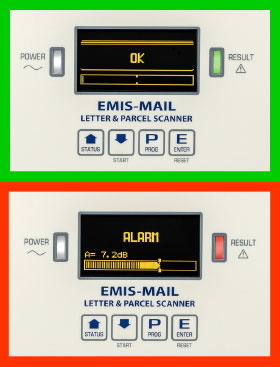

  • Visual
    • High-contrast OLED graphic display with bar-graph indication/zone location (pinpointing)
    • LED indicators on the control panel:
      • White: Power supply
      • Green: OK
      • Red: Alarm,Autodiagnosis
      • Blue: Alarm, detection of radioactive substances


Security / Safety

  • Access to programming protected by password
  • Galvanic isolation: operates on Low DC voltage


Communication

  • Incorporated Bluetooth (FCC ID: QOQWT12 - IC:5123A-BGTWT12A) interface, RS232


Environmental data

  • Temperature
    • Operating: 14°F to 122°F
    • Storage: -13°F to 140°F
  • Relative humidity: 5 to 90 %, without condensation


Conformity (Test Reports available upon request)

  • SAFETY
    • EN61010-1
    • ACGIH, 2014 Threshold Limit Value (TLV)
    • IEEE C95.1-2005
    • EC-Rec. 1999/519/EC
    • EN 50364:2010
  • EMC
    • EN61000-6-1
    • EN61000-6-3
  • RED
    • EN300330: Short Range Devices (SRD)


NATO stock number

  • 6665150105807


Gamma radiation detection

  • Optional upgrade for the detection of radioactive sources is available on demand. The gamma alarm indication includes the activity level (low/medium/high) and the CPS value (counts per second). Analysis time: 5 seconds

Applications

The EMIS-Mail devices are designed to be used in:
  • Government buildings
  • Diplomatic Missions
  • Public Authorities
  • Critical Infrastructures
  • Private Corporations Mailrooms
For the security screening of:
  • Letters
  • Small Parcels

Options

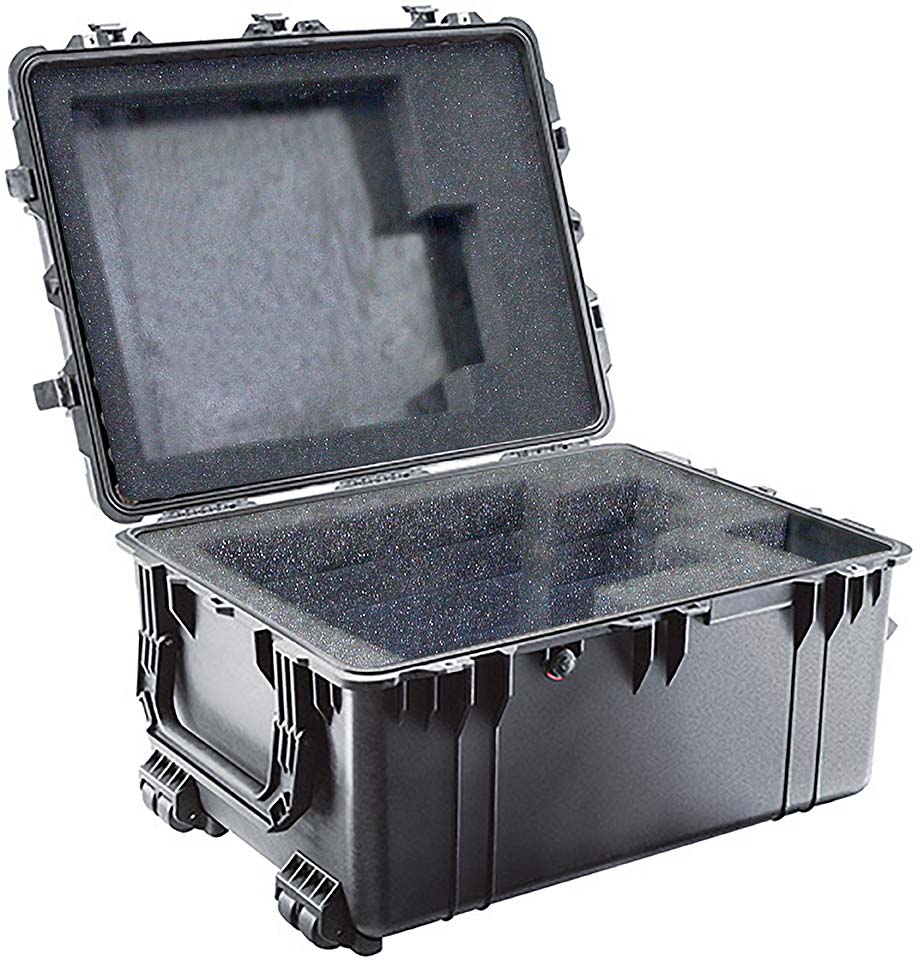

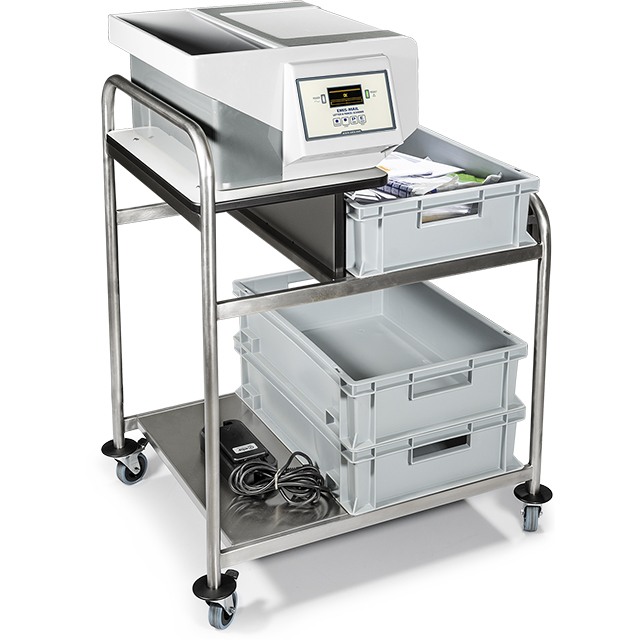

Accessories

Documents


Brochure
Click To View US Brochure




Certificates
CE Certificate
Human Exposure Certificate



Technical drawings
Technical Drawings
