SMD®601 Plus
Most sensitive Multi-Zone Metal Detector for law enforcement and correctional facilities
- Most sensitive WTMD, fully compliant with the NIJ-0601.02 and NIJ-0601.03 Standards
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Accurate pinpointing of individual and multiple metal targets
- Exceptional immunity to external interferences
- New mechanical structure with high protection degree
- Integrated correctional profiling system (optional)
- Unmatched reliability
Brochure
Manuals

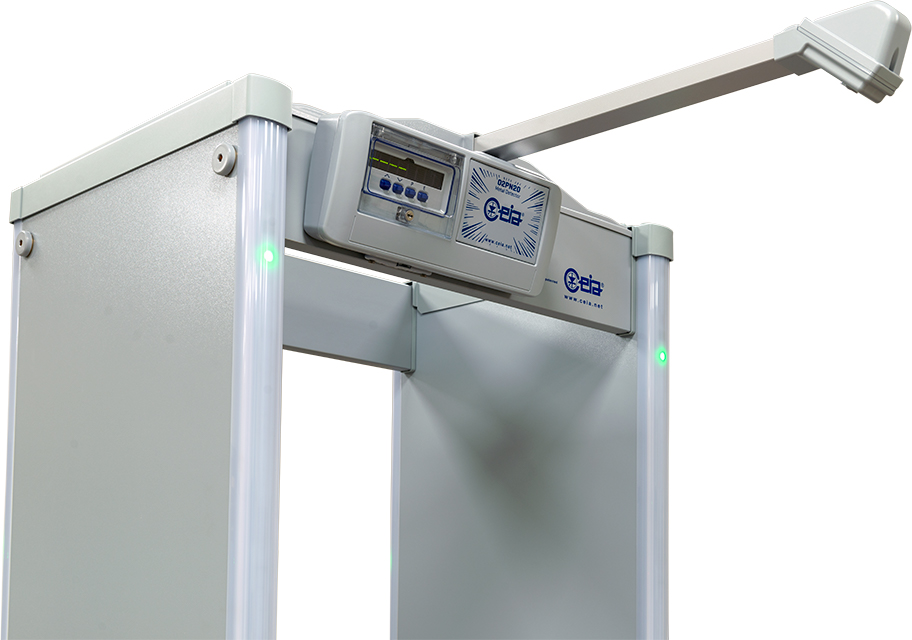

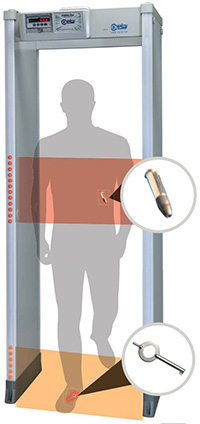

The SMD®601 Plus is a very high sensitive Walk-Through Metal Detector. A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threats and a reduction or elimination of the need for manual searches. SMD®601 Plus detects even the smallest metal items anywhere on or in the body.

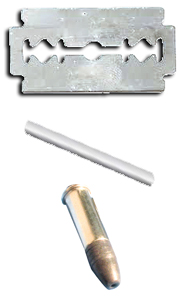

Ultra-High Sensitivity capability. Examples of additional detectable targets: Disposable Razor Blades; Special metal items (e.g. AISI 300 series Stainless Steel); Bullets
Fully compliant with the NIJ-0601.02 and NIJ-0601.03 standards
The SMD®601 Plus further extends the detection sensitivity of the previous SMD®601 to metal threats before considered undetectable due to their minimal dimensions and metal composition similar to the ones specified in the new NIJ-0601.03 Standard.
Accurate detection of all metallic threat items
- Very accurate pinpointing of individual and multiple metal targets
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Built-in programs to screen visitors and staff for weapons and contraband
New certified ip66 control unit enclosure
- Total compatibility with previous control units
- Robust structure through the use of high-performance polymers for the construction of housing
- Waterproof / Dustproof: IP66 compliant (IEC 60529)
- Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
- Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity
Unique alarm signalling
- 20 vertical localization zones
- High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
- Flexible Acoustic Alarm Signalling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
- 10 Alarm Volume Levels
- High Precision Transit Counter: In-Bound transits; Out-Bound transits; Alarm rate
Most powerful and versatile security features
- Over 40 built-in Security Programs: Up to 22 pre-programmed Security Programs; Up to 20 user programmable Security Programs
- Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
- Any security standard can be enhanced with selectable random alarm probability
Chip card system
The system allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.
Download Specifications
Gate structure
- State-of-the-art, robust and washable panels
- Antivandalic and antitampering IP66 control unit
- Embedded high precision transit counters (2-beam photocells)
- Antitampering ON/OFF switch
- Protected against aging, weather and wear
Operational features
- High discrimination and transit flow rates five or more times greater than other metal detection systems
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (50" ft/sec.)
- Built-in operational functional verification (OFV)
- One-touch key reading of inbound, outbound and Security Level Data
Quality
- Continuous self diagnostic system
- Proven reliability
- No periodic re-calibration and preventive maintenance required
- No scheduled maintenance
- Fully digital design
Alarm signalling
- Multi-zone display bar for “height on person” localization
- 20 vertical localization zones
- 2 display bars programmable as zone indicators and/or pacing lights
- Specific shoe alarm color indication
- Green and red metering signals proportional to the mass of the detected target
- 10 selectable continuous and pulsed tone plus 34 special tones
- 10 selectable sound intensities ranging from 0 to 90 dbA at 3.3 ft
- Random alarm capability with independent counters, alarm tone and alarm volume
- Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling)
Type of signalling
- Fixed or proportional to the mass in transit - visible from 19.7 ft under lighting of 4000lux
- 20 x4 distinct zones (20x2 entry side and 20x2 exit side)
Programming
- Over 40 built-in Security Programs
- Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
- Security level: International Standard (IS) command / Chip card
- Local by Control Unit alphanumeric display and keyboard
- Programming and chip card access protected by user and super-user passwords
Installation data
- Automatic synchronisation between two or more metal detectors with distance of down to 2" without the use of external cables
- One Touch Automatic Self Installation (OTS)
Certification and compliance
- Fully compliant with the NIJ-0601.02 Standard requirements
- Complies with the applicable Standards for Law Enforcement and Correctional Facilities
- Compliant with applicable International Standards for electrical safety and EMC
- Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
- Harmless to magnetic media (CD, tapes, etc.)
Environmental data
- Powered by safe low voltage DC through external switching power supply adapter
- Power Supply : 100…277V~ ±10%, 47…63Hz, 50 VA typical consumption
- Operating temperature: -4°F to 149°F (-34°F to 158°F upon request)
- Storage temperature: -34°F to 158°F
- Relative humidity: 0 to 95% (without condensation)
Comprehensive support
- CEIA USA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site.

APSiM3Plus
Integrated Web-server & Logger, Battery Back-up and Charger
Part Code: APSiM3Plus/P

Embedded battery back-up and charger
Lower Connection Module with anti-tamper on/off switch, RS-232 interface and internal battery back-up. The module provides an audible ‘flat battery’ signal activated when the battery charge goes below the operational limit of the device
Part Code: APSM2Plus/P

IP65 Configuration
Outdoor sheltered permanent or non-sheltered short-term installations (single event entrance).

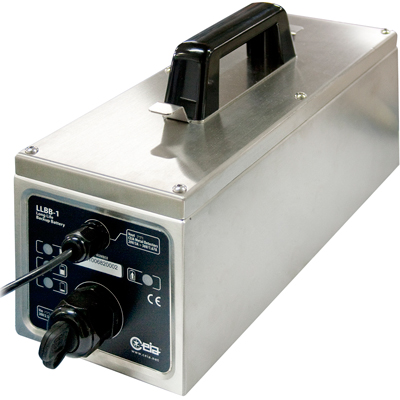

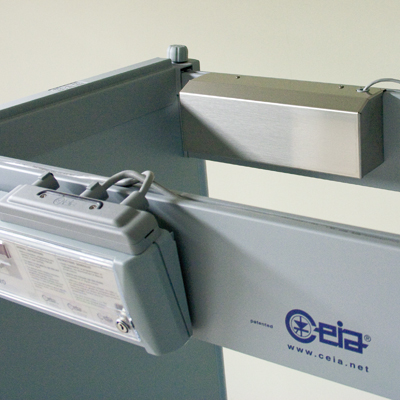

Crossbar battery back-up
Crossbar battery back-up in stainless steel case.
Part Code:
- 55681
- Protection cover: 75122

Integrated camera system
Video camera with support arm and connecting cables
Installation of the APSiM3 Plus module is required
Part Code: 54253

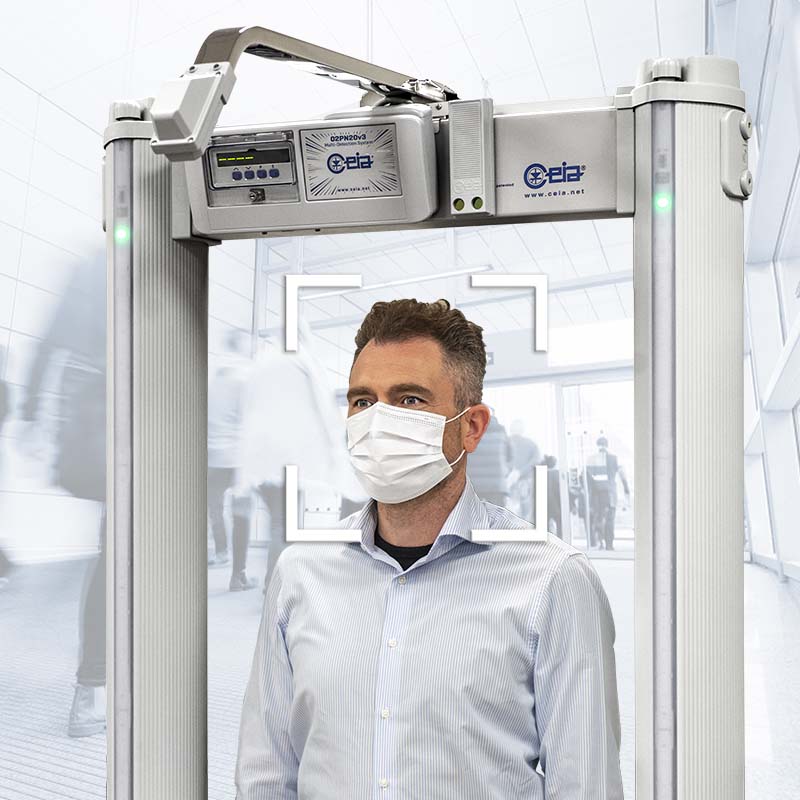

TDU
Thermal Detection Unit
Part Code: TDU/P

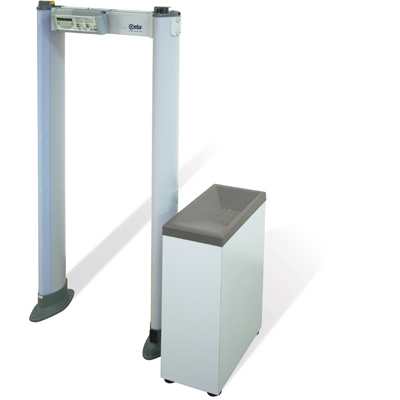

Metal Detector Divesting Table
Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

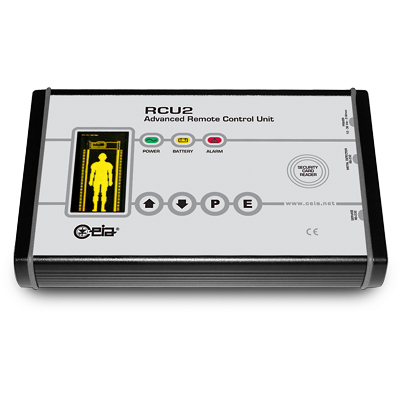

RCU2
Advanced Remote Control Unit
Part Code: # RCU2

MBSU-2
Mains & Battery Supply Unit
Part Code: # MBSU-2

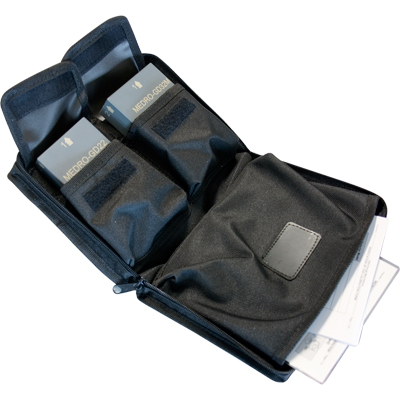

MBSU-LWSC

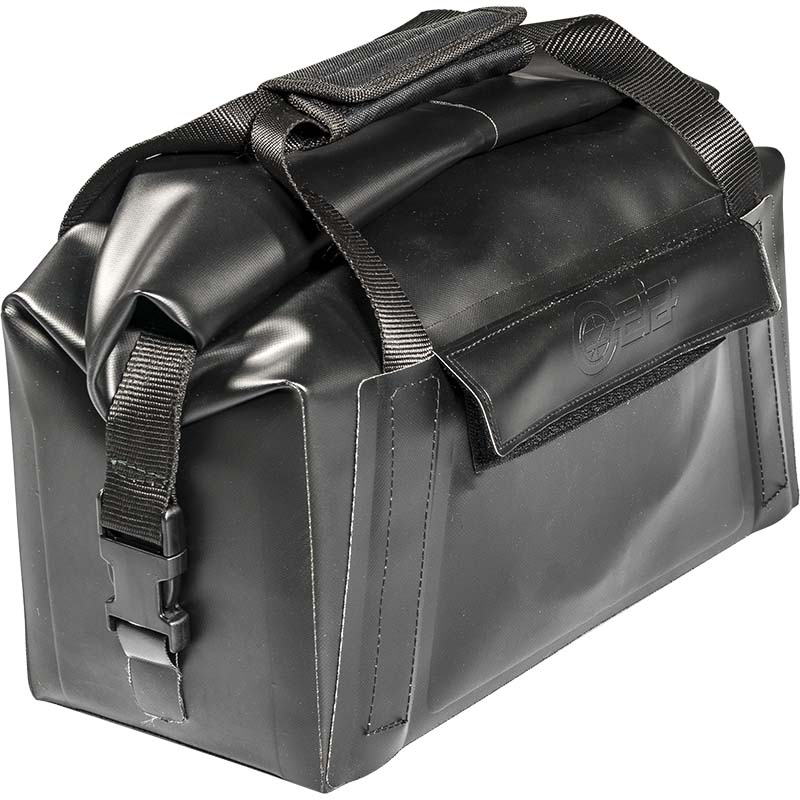

Light Weight Soft Case Version
Part Code: #MBSU-LWSC

TSU

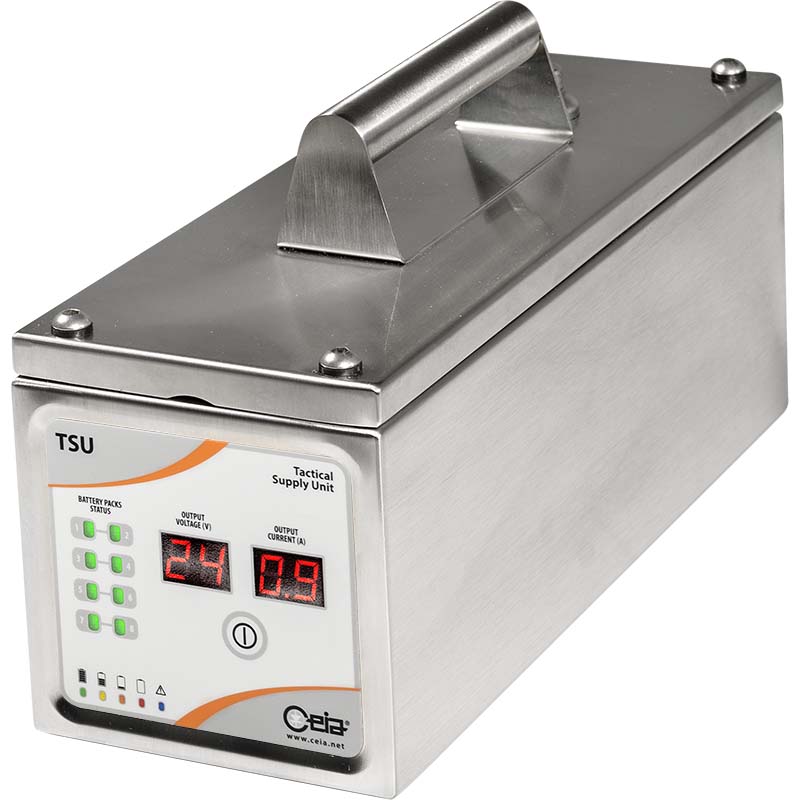

Tactical supply unit
Part Code: # TSU

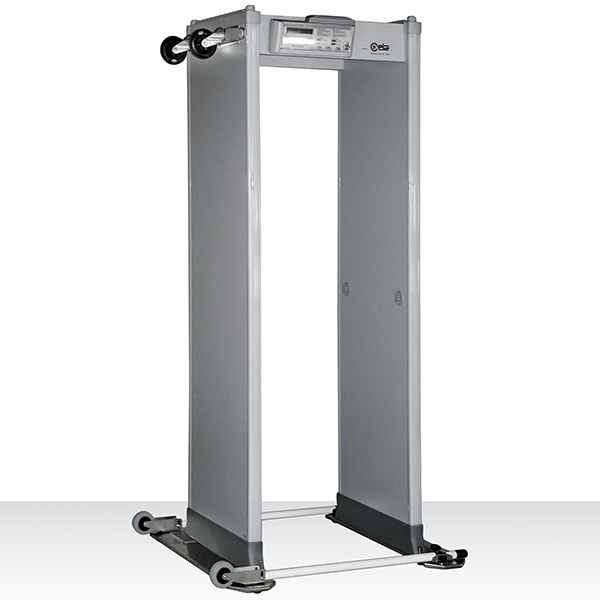

Wheel Kit - Long Range
For Panel Walk-Through Metal Detectors
For heavy duty, longer range movement of the walk-through metal detectors
Part Code: # 70796

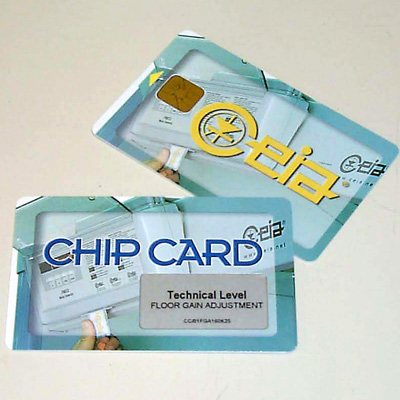

Chip cards
Chip cards for simple and secure selection of Security Levels and parameter setting
List of chip-cards available on request

IRC-1

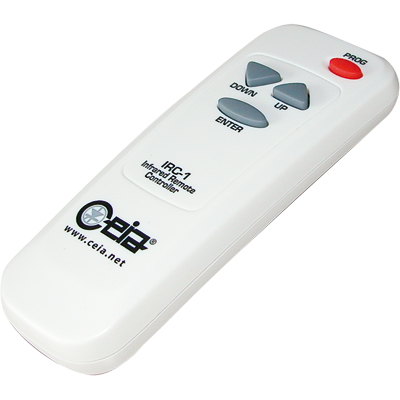

Infrared Remote Controller for wireless remote programming of the control unit
Part Code: # 47180

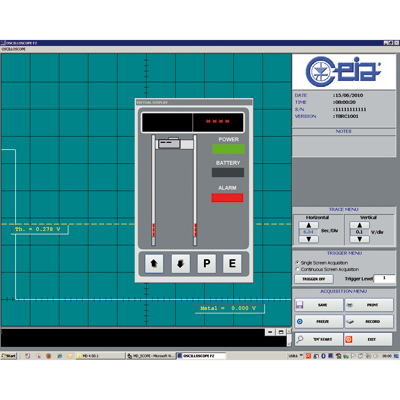

MD-Scope
Powerful, PC based installation and service Software
Includes oscilloscope and terminal functionality
The connection is performed via BT (standard) or via cable connection
Part Code: # MD-SCOPE2

Kit OFV
Operator-level functionality test

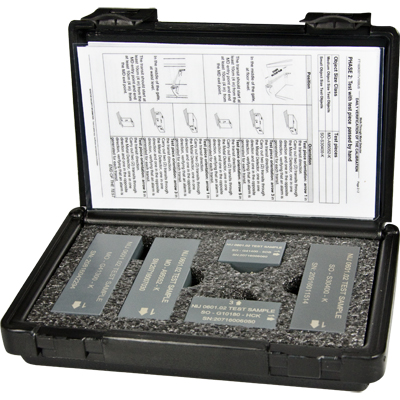

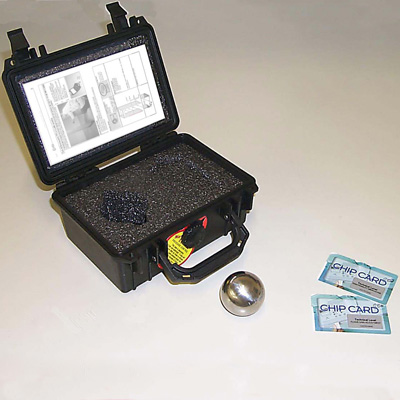

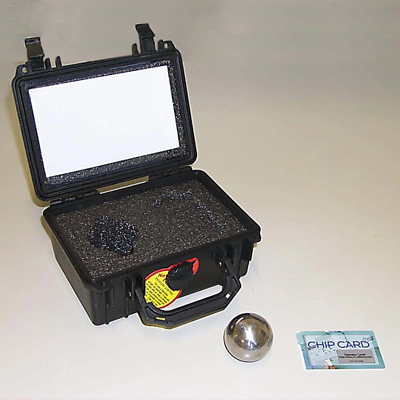

Test samples kit Gun assembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GAL

Test samples kit Gun Disassembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GDML

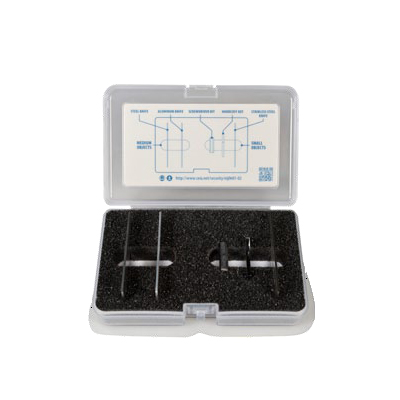

NIJ0601.02SO/MO -SK
Test samples kit for threat detection accuracy

Kit FGA and TFV
Functionality test and adjustment of gain at ground level

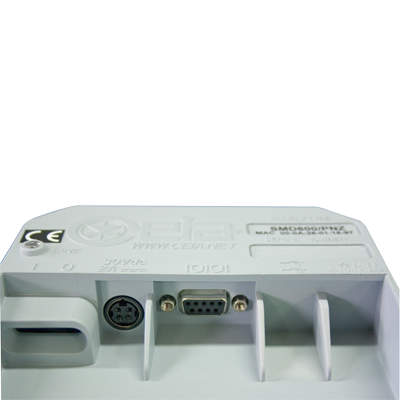

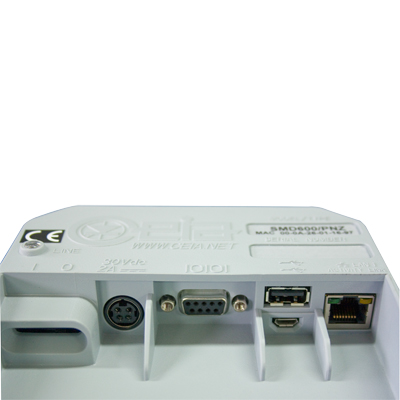

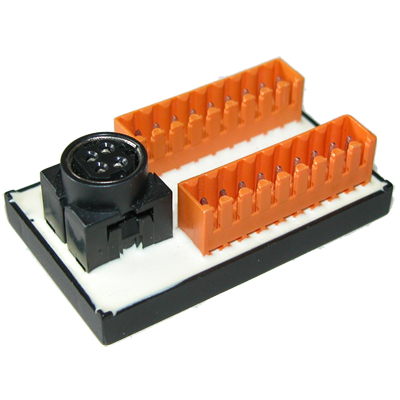

Upper Connection Module
Part Code: # 46650

MD-WHK
Wireless repeater of acoustic indications for WTMDs
Part Code: MD-WHK

Top Power Cable
This cable allows the AC/DC adapter to be connected to PS/COM port located on top of the TX antenna to supply the Metal Detector Gate
