Wall-mounted Ferromagnetic Detector for the safety of people and systems in MRI facilities





Company Presentation
ISO 9001 Certification




Visit us at
TIACA - Air Cargo Forum Miami
Miami, FL - United States of America
12 - 14 November 2024
Exhibitor: CEIA S.p.A. - Booth 735

See upcoming events >>
  • PREVENTIVE DETECTION OF FERROMAGNETIC AND MAGNETIZED OBJECTS which can cause a “projectile effect” in the MRI room
  • HIGH AND UNIFORM SENSITIVITY TO FERROMAGNETIC ITEMS
  • Accurate localization with MULTI-ZONE ACOUSTIC AND OPTICAL ALARM SIGNALING
  • EXTREMELY DURABLE DESIGN including stainless steel and high impact reinforced plastics
  • IT CAN OPERATE IN ANY LOCATION in Zone I, II or III
  • UP TO 70,000 EVENTS CAN BE RECORDED locally (FIFO LOGGER) with traceability of the alarms, programming modifications and diagnostics
  • PROGRAMMING of operational parameters and DOWNLOADING OF DATA LOGGER by smartphone or portable PC
  • Powered through PoE Ethernet or with 24Vdc external adapter

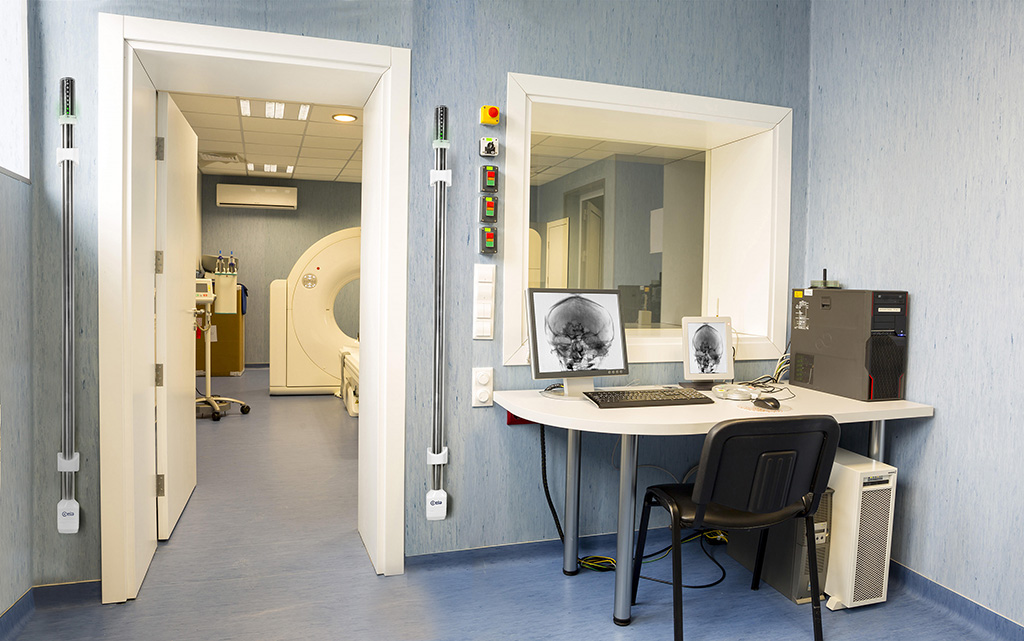

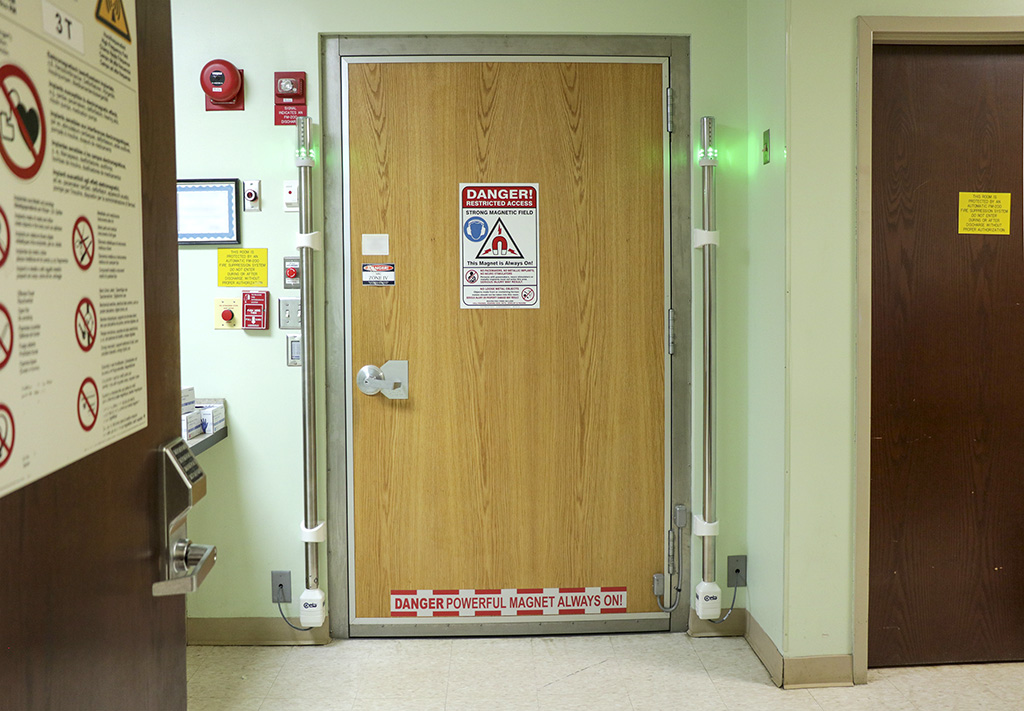

  • Large number of CEIA MSD ferromagnetic detectors installed


Brochures
Click To View English - US Brochure




Manuals



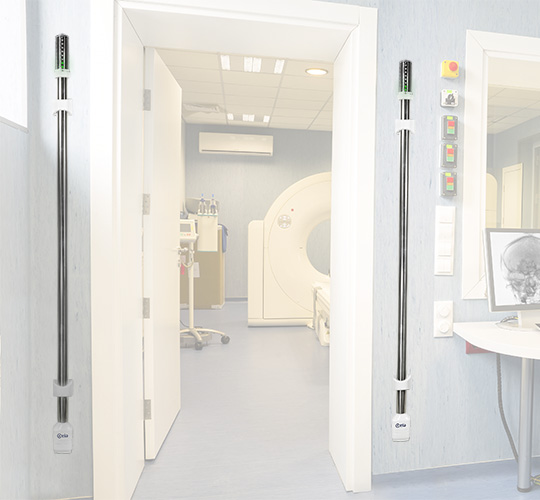

MSDW

High sensitivity to ferromagnetic metals, detection over entire height of person, advanced technology, compact design, extremely durable and reliable

MSDW - detail

Ferromagnetic Detector Management App

Controls and indicators

  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • SECURITY: Password protected programming at User and Supervisor level
  • MULTI-COLOR STATUS AND ALARM WARNING LIGHT
    • GREEN LIGHT: Normal operation, no alarm
    • YELLOW LIGHT: Detection of ferromagnetic object below alarm threshold
    • RED LIGHT: Detection of ferromagnetic object above alarm threshold: Full height alarm indication; Indication proportional to signal intensity; Alarm indication with 5 different localization zones; Full height alarm indication, followed by zonal signalling
    • BLINKING RED LIGHT: diagnostics alarm
    • BLUE LIGHT: Connecting BT device in progress
  • ALARM SOUNDER
    • Alarm indication for target over the alarm threshold: Fixed tone; Tone proportional to signal intensity; Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome
  • BT HEADSET (ACCESSORY): Copies all acoustic indications, with the addition of checking BT connection

Power supply

  • Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • Via connecting cable to external 24Vdc supply
  • Via external AC/DC power adapter [ACCESSORY]

Input/output

  • LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
    • Power supply input. Voltage: 24Vdc ±10%, 0.25A max
    • RS-232 serial communication lines
    • Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
    • Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.

Environmental conditions

  • Working temperature: -10°C to +65°C
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95%, non-condensing

Detector weight

  • 3,5 Kg

Dimensions

  • 90 mm x 73 mm x 1820 mm (WxDxH)

Shipping information

  • Dimensions (WxDxH) 200 mm x 160 mm x 2170 mm
  • Weight 10 Kg

Detector degree of protection

  • IP55

Available accessories

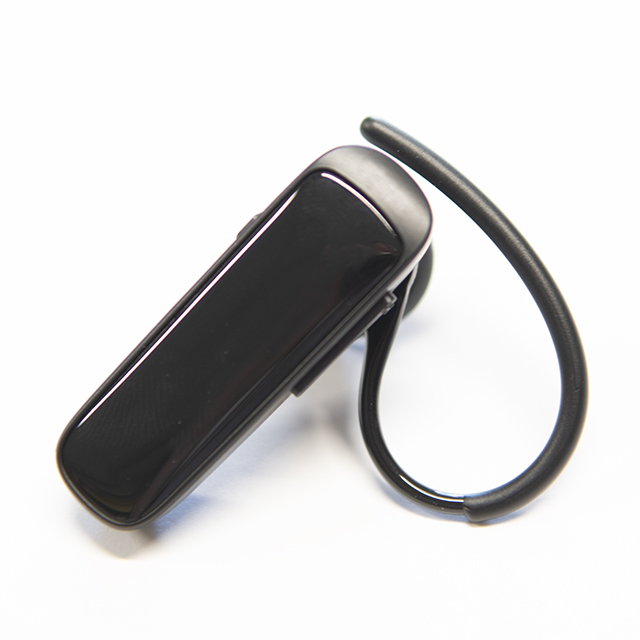

  • BT audio function activation, headset and charger - code 88919

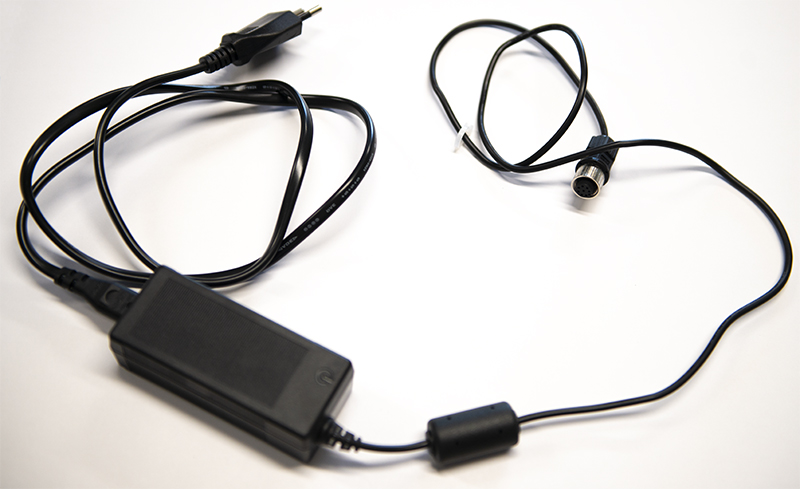

  • External AC/DC adapter - code 91553
  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

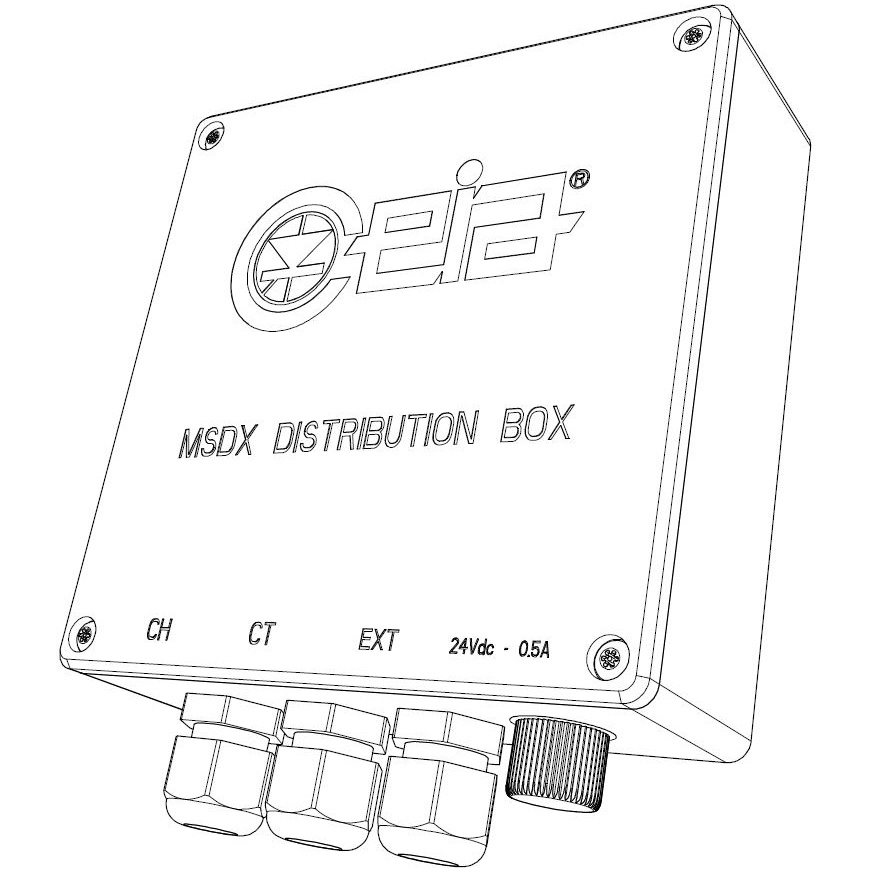

  • MSDX Distribution Box - Accessory to be used for the installation of CEIA MSDW devices, designed to simplify the connections between detectors and external devices. It allows the connection of a single detector (Chain Head) or both (Chain Head and Chain Tail), in order to have a single power supply source. - Code 106913

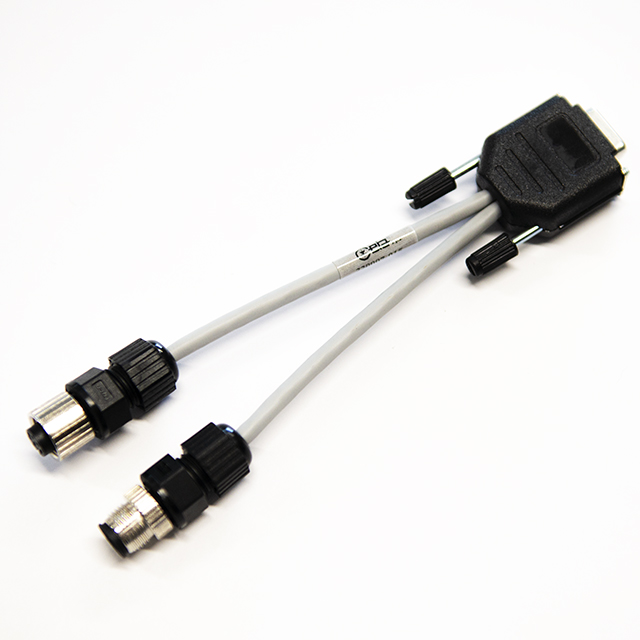

  • Service cable for RS-232 connection - code 91556
  • Standing mat: self-adhesive mat with indication of position and rotation - code 94590

Certification and compliance

  • Safe for use for pacemakers and other medical implants
  • Compliant with the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
