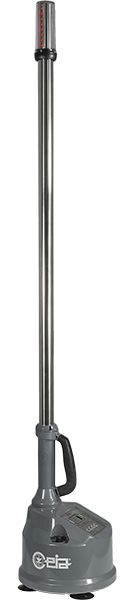

MSD^™

Benefits

• Detection of magnets and ferromagnetic metals
• Full-height, 360° detection (horizontal & vertical)
• 5 individual zones for pinpointing locations of contraband on the body
• Covert operation through use of BT wireless headset (included)
• Fully weather proof for outdoor use
• 24 hours typical / 26 hours max. of continuous battery operation with 4.5 hours charge
• One-piece and lightweight design (total weight only 9,5 kg with batteries included) easily transportable by one person
• Unmatched detection in all environments without adjustment
• Extremely durable design using stainless steel and high impact reinforced plastics
• Anti-tip suction cups for securing to smooth floor surfaces (included)
• Non-emitting device: safe for use for pace-makers and other medical implants
• Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)

Carrying case for personal transport and storage

• Heavy-duty lightweight carry system
• Custom fit to the MSD^™ shape
• Dedicated pocket for accessories
• Space–saving
• Included parts:
  • MSD^™ Ferromagnetic Detector unit
  • Test sample

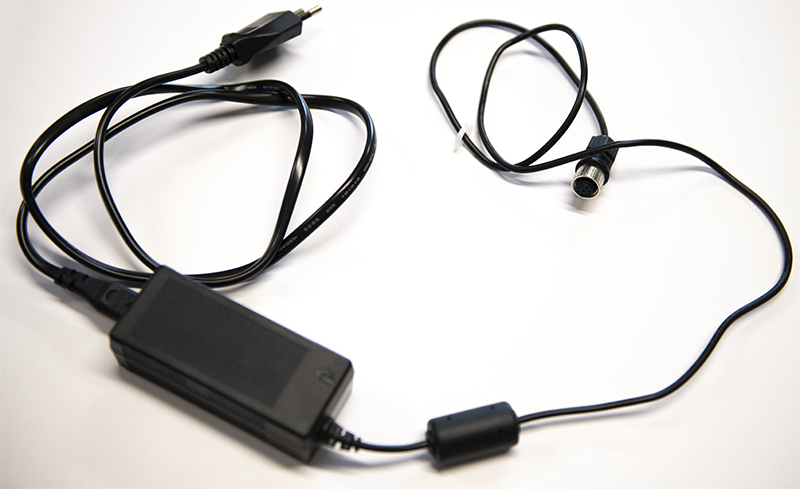

  • External AC/DC battery charger adapter
  • Carrying case

MSD EVO^™™ Option

Even though the MSD^™ is typically used as a stand-alone single pole, the new MSD^™ Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 180 cm with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.

Controls and indicators

• ON/OFF push-button
• 4-key keypad, for programming and status readout
• Programming of operational parameters and downloading of data logger by smartphone or portable PC
• SECURITY
  • Password protected programming at User and Supervisor level
• MULTI-COLOR STATUS AND ALARM WARNING LIGHT
  • GREEN LIGHT
    • Normal operation, no alarm
  • YELLOW LIGHT
    • Detection of ferromagnetic object below alarm threshold
  • RED LIGHT
    • Detection of ferromagnetic object above alarm threshold:
      • Full height alarm indication
      • Indication proportional to signal intensity
      • Alarm indication with 5 different localization zones
      • Full height alarm indication, followed by zonal signalling
    • Blinking light: diagnostics alarm
  • BLUE LIGHT
    • Connecting BT wireless device in progress
• ALARM SOUNDER
  • Alarm indication for target over the alarm threshold:
    • Fixed tone
    • Tone proportional to signal intensity
    • Single pulse for pinpointing target
  • Alarm tone can be selected, continuous and intermittent
  • Self-diagnostics signal: intermittent tome
• BT HEADSET (ACCESSORY)
  • Copies all acoustic indications, with the addition of checking BT connection

Power supply

• AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
• Embedded rechargeable battery
  • 16h typical / 17h max. of continuous operation with 3 h battery charge
  • 24h typical / 26h max. of continuous operation with 4.5 h battery charge

Detector environmental conditions

• Working temperature: -10°C to +65°C
• Storage temperature: -37°C to +70°C
• Relative humidity: 0 to 95%, non-condensing

Weight

• MSD^™: 9,5 kg
• AC/DC adapter: 0,7 Kg
• BT wireless communication kit: 0,2 Kg (includes battery charger)
• Carrying case: 0,6 Kg
• Installation kit: 0,3 Kg

MSD^™ dimensions

• Height: 1900 mm; Width: 330 mm

Shipping information

• Dimensions (WxDxH) 400 mm x 2000 mm x 480 mm
• Weight 24 Kg

Degree of protection

• Fully weather proof for outdoor use (IP65)

Available accessories

• EVO function activation; code 88918
• BT wireless audio function activation. Includes a headset with AC/DC charger; code 88919

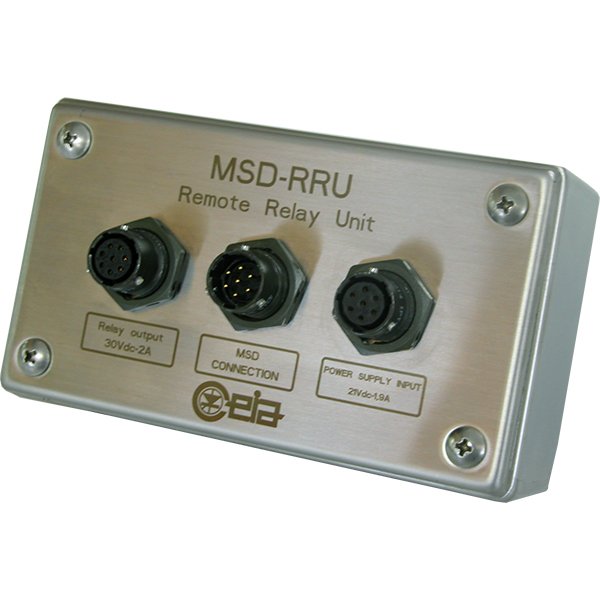

• MSD^™-RRU Remote Relay Unit; code MSD^™-RRU
• App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

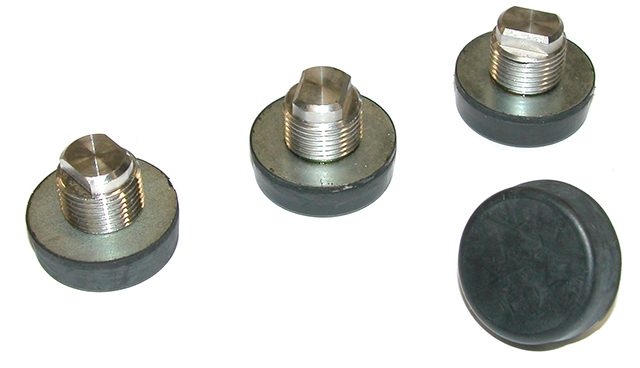

• Solid rubber feet; code 88917

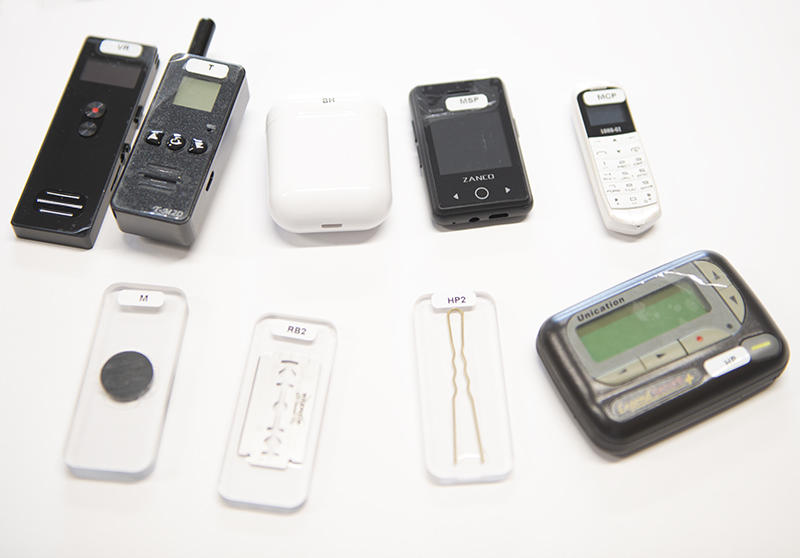

• MSD^™ Demo Kit - Kit of demonstration objects, consisting of: BT wireless headset • Hair pins • Hospital pager • Magnet • Medical scissors • Micro cell phone • Micro smartphone • Needle • Razor blades • Transceiver • Voice recorder; code 89052

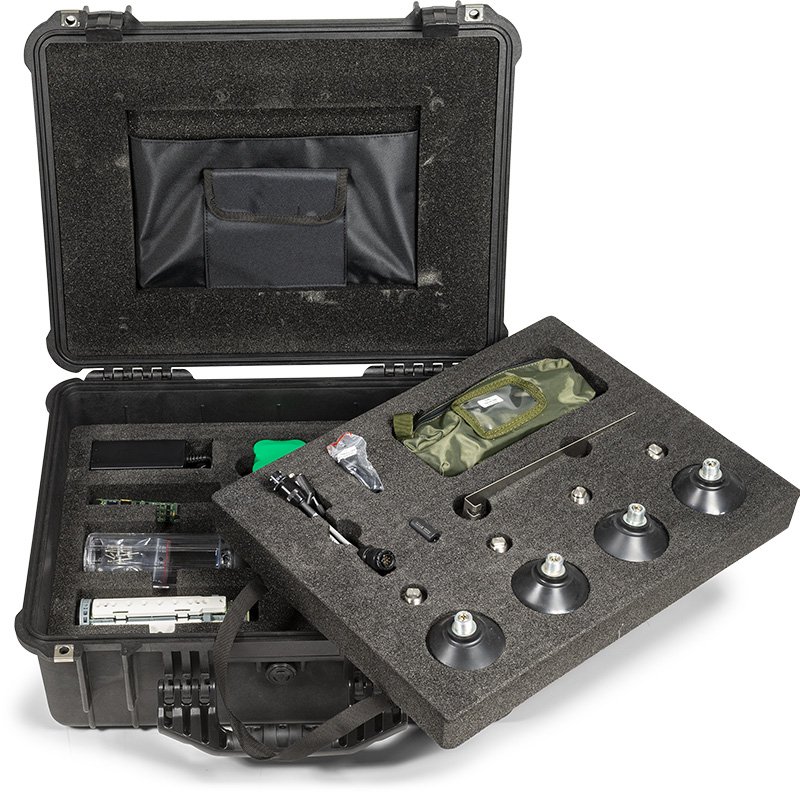

• MSD^™ Maintenance Kit: Set of main spare parts and necessary tools; code 89051

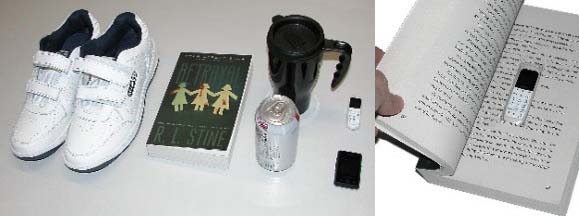

• MSD^™ Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects; code 89054

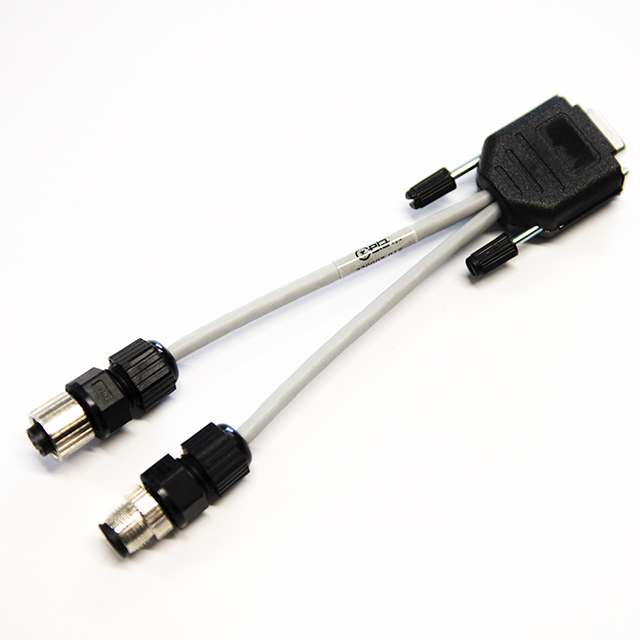

• MSD EVO^™ Connecting
  • Cable Length 2.7 m; code 95376
  • Length custom, up to 25 m code 95494
• Standing mat: self-adhesive mat with indication of position and rotation; code 94590

Certification and compliance

• Safe for use for pace-makers and other medical implants
• Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
• Compliant with and certified to the applicable International Standards for electrical safety and EMC
