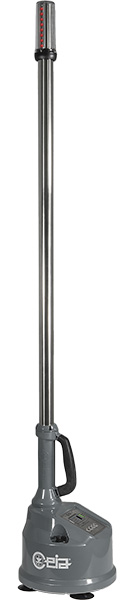

High-Performance Ferromagnetic Weapons Detector







Company Presentation
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure







Visit us at
See all upcoming events >>

  • High sensitivity to ferromagnetic metals
  • Detection over entire height of person
  • Advanced technology compact design
  • Extremely durable and reliable
  • Ideal for covert access control: very small footprint; easily concealed inside ornamental structures
  • High and uniform sensitivity
  • Accurate localization with multi-zone acoustic and optical alarm signalling
  • Extremely durable design including stainless steel and high impact reinforced plastics
  • Up to 70,000 events can be recorded locally (FIFO Logger) with traceability of the alarms, programming modifications and diagnostics
  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • Powered through PoE Ethernet or with 24Vdc external adapter
  • Large number of CEIA MSD ferromagnetic detectors installed

Brochure
Click To View GB Brochure


MSDi

Specifications

Controls and indicators

  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • SECURITY: Password protected programming at User and Supervisor level
  • MULTI-COLOR STATUS AND ALARM WARNING LIGHT
    • GREEN LIGHT: Normal operation, no alarm
    • YELLOW LIGHT: Detection of ferromagnetic object below alarm threshold
    • RED LIGHT: Detection of ferromagnetic object above alarm threshold: Full height alarm indication; Indication proportional to signal intensity; Alarm indication with 5 different localization zones; Full height alarm indication, followed by zonal signalling
    • BLINKING RED LIGHT: diagnostics alarm
    • BLUE LIGHT: Connecting BT device in progress
  • ALARM SOUNDER
    • Alarm indication for target over the alarm threshold: Fixed tone; Tone proportional to signal intensity; Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome
  • BT HEADSET (ACCESSORY): Copies all acoustic indications, with the addition of checking BT connection


Power supply

  • Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • Via connecting cable to external 24Vdc supply
  • Via external AC/DC power adapter [ACCESSORY]


Input/output

  • LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
    • Power supply input. Voltage: 24Vdc ±10%, 0.25A max
    • RS-232 serial communication lines
    • Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
    • Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.


Environmental conditions

  • Working temperature: 14 to 149°F
  • Storage temperature: -35 to 158°F
  • Relative humidity: 0 to 95%, non-condensing


Detector weight

  • 7.7 lbs


Dimensions

  • Width: 3.5” - Height: 71.7” - Depth: 2.9”


Shipping information

  • Dimensions (WxDxH) 85.5” x 7.9” x 6.3”
  • Weight 22 lbs


Detector degree of protection

  • For indoor and outdoor use


Available accessories

  • BT audio function activation, headset and charger - code 88919

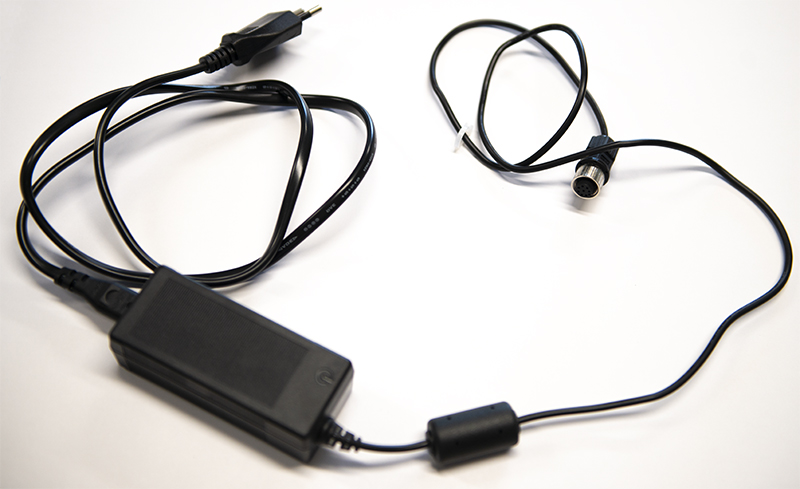

  • External AC/DC adapter - code 91553
  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

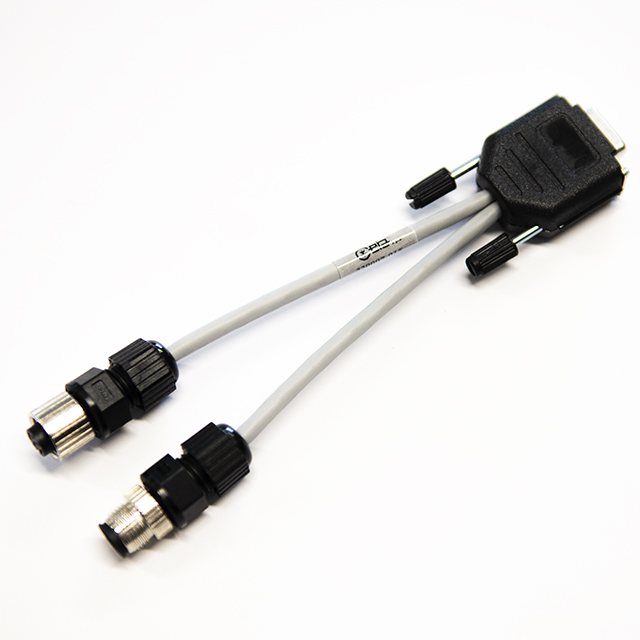

  • Service cable for RS-232 connection - code 91556


Certification and compliance

  • Safe for use for pacemakers and other medical implants
  • Compliant with the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
