PD240CH-Z4
Dual sensing Hand-Held Ferromagnetic Detector for patient screening prior to MRI scans
- Non-magnetic construction, suitable to operate inside the magnet room
- High precision pinpointing by dual-tone audio signalling & dual-colour display
- Large search area for faster and accurate screening operations
- Three modes of operation allow for high-performance ferrous detection, head or full body, or full metals detection in full body
- Patient safety - Mitigates the risk of an RF burn occurring in the scanner due to either Ferrous or Non-Ferrous Metals
- Dual sensing - Separate screening for ferrous metallic items or any type of metallic item
- Audible and visual-magnitude alert settings
- Visual signalling combined with the audio provide feedback on the location and position of the object under alarm
Brochures
Manuals

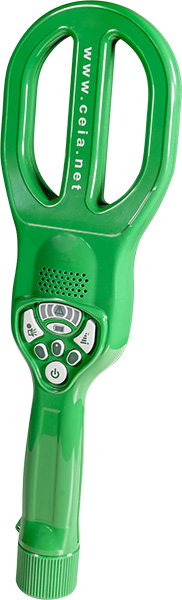

PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time. The PD240CH-Z4 can be operated in Zone 1, 2, 3, 4.
Customizable interface, energy-saving mode, and sensitivity
PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time. The only hand-held MRI patient screening device capable of separately detecting both ferromagnetic and non-ferromagnetic metallic items, the PD240CH-Z4 provides protection from both adverse magnetic field interaction (projectile effect) and potential RF-induced metallic heating.
PD240CH-Z4 is designed to be entirely non-ferromagnetic, there¬fore it can be used inside the MRI room (zone 4) without the risk to be attracted or damaged by the magnets without comprising performance or creating a potential projectile risk.
Download Specifications
Power Supply
- 2 x AA size LS14500 very low ferromagnetic Lithium batteries

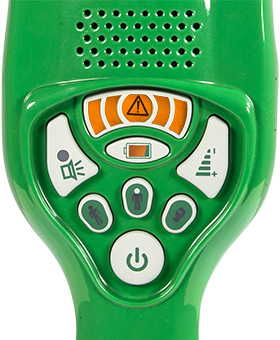

Control Panel
- Optical and acoustic signalling modes3-Level Sensitivity selection
- ALL METALS (ferromagneticand non-ferromagneticmetals)
- BODY (small ferromagneticmetals)
- HEAD (very small ferromagneticmetals)
Detection and Operational Functions
- Customizable via HHMD Configuration tool
Battery
- Battery life (AA LS14500 batteries)
- ALL METALS > 100 hours
- FERROUS METAL BODY > 50 hours
- FERROUS METAL HEAD > 50 hours
Low battery indicator
Operating temperature
Storage temperature
Relative humidity
- 0 to 98% (without condensation)
Dimensions
- PD240CH-Z4 15.9” x 4.7” x 1.6”
- Carry Bag 17” x 13.4” x 4.1”
Weight
- PD240CH-Z4 0.93 lbs (with battery)
- Carry Bag 5 lbs (with equipment)
Compliance
- Conforms to the applicable international standards for safety, EMC and to the applicable CE regulations
Safety features
- Manufactured in shock-resistant technical polymers
- Full non-magnetic construction, suitable to operate in Zone 4 (with magnets up to 3T) and in proximity of the magnet
- Operability and safety of the device have been verified with magnets up to 3T. The test report is available on request
PD240CH-Z4 detecting set
- Hand-held Patient Screener
- 2+2 AA size non-magnetic batteries: part# 94810 (2 batteries)
- Detection Verification. Test Piece: part # 72131
- Discrimination Verification. Test Piece: part # 72132
- Instruction manual
- Certificate of Calibration
- Carry bag
Options / Accessories
- Patient screener configuration tool: setting up the Hand-held Patient Screener via USB PC-HHMD connecting cable and GUI application software: part # 63537
Analysis mode selection
- ALL METALS
- High sensitivity to all types of metals (implanted medical devices, prostheses, metal splinters)
- BODY
- High sensitivity to small ferromagnetic metals (ferromagnetic fragments, surgical instruments)
- Insensitive to large non-ferromagneticmetal items (large prostheses)
- HEAD
- High sensitivity to very small ferromagnetic metals (small ferromagnetic fragments)
- Insensitive to medium size non-ferromagnetic metal items (non-ferromagnetic dental implants, small prostheses)

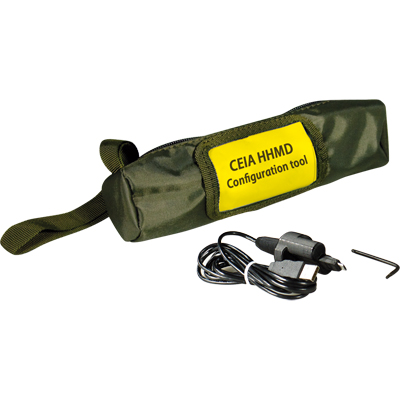

HHMD
Allows the connection of the Metal Detector to PC, via USB port.
Includes special USB adapter with cable, GUI application software, tool for battery cap removal.
Part Code: # 63537
