MSD™ Plus

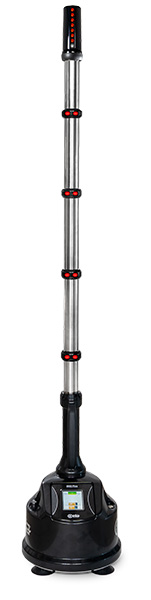

Highly Portable Multi-Zone Ferromagnetic Detector
MSD™ Plus
Highly Portable Multi-Zone Ferromagnetic Detector
- Detects concealed cell phones and ferrous contraband, including internally concealed items
- Multi-zone targeting pinpoints contraband location for faster screening
- Full-height 360° detection delivers complete body coverage
- High sensitivity with interference immunity ensures reliable performance
- Lightweight one-piece 22 lb design sets up in under 10 seconds
Folleto
Manuales
The illegal use of cell phones is a growing and dangerous problem in correctional institutions worldwide. These devices are a significant threat to prison security and circumvent the monitoring processes in prisons, while allowing inmates to commit new crimes both inside and outside the facility. The MSD™ Plus was specifically designed to detect all cell phones and ferromagnetic contraband concealed on the person or in body cavities (including key fob cell phones, smart phones, radio transceivers, etc.) quickly and easily. The one-piece design allows the MSD™ Plus to be easily transported and operational in 10 seconds.

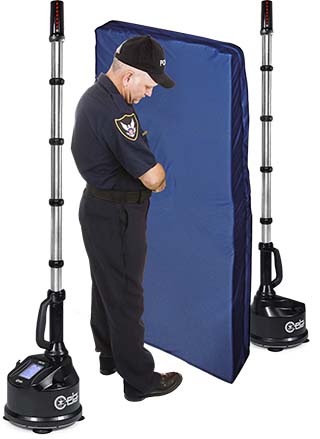

Accurate investigation of mattresses and other objects that could hide contraband.
Ferrous contraband presents an ongoing security risk in correctional institutions, allowing inmates to conceal unauthorized metallic items that can disrupt operations and compromise facility safety. The MSD™ Plus is a ferromagnetic detection system designed to identify a wide range of concealed ferrous contraband, including cell phones, communication devices, and other metallic objects carried on the body or concealed internally, supporting controlled, consistent screening procedures.
Benefits
- Detection of all cell phones and other ferromagnetic contraband
- Full-height, 360° detection (horizontal & vertical)
- 9 zone combinations for pinpointing locations of contraband on the body
- Covert operation through use of bt wireless headset
- Fully weather proof for outdoor use
- Up to 60 h max. Of continuous operation
- One-piece and lightweight design (total weight only 10 kg with batteries included) easily transportable by one person
- Unmatched detection in all environments without adjustment
- Extremely durable design using stainless steel and high impact reinforced plastics
- Anti-tip suction cups for securing to smooth floor surfaces (included)
- Safe for use for pacemakers and other medical implants
- Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)
Carrying case for personal transport and storage
- Heavy-duty lightweight carry system
- Custom fit to the MSD™ Plus shape
- Dedicated pocket for accessories
- Space–saving
- Included parts: MSD™ Plus Ferromagnetic Detector unit; Test sample; External AC/DC battery charger adapter; Carrying case
MSD™ Plus EVO™ Option
Even though the MSD™ Plus is typically used as a stand-alone single pole, the MSD™ Plus Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 180 cm with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.
MSD™ Plus EVO™ Pass-Through Configuration
Thanks to the special EVO analyses, the access point configuration works with uniform detection sensitivity over the entire transit area.
Download Specifications
Controls and indicators
- ON/OFF switch
- 4.1" TFT-LCD touch screen display
- Programming of operational parameters and downloading of data logger by smartphone or portable PC
- Security: Password protected programming at User and Supervisor level
- Color status and alarm warning light
- Power Indicator LED (WHITE)
- Alarm Indicator LED (RED LIGHT)
- Full height alarm indication
- Indication proportional to signal intensity
- Alarm indication with different localization zones
- Blinking light: diagnostics alarm
- Connecting BT device in progress LED (BLUE LIGHT)
- Alarm sounder
- Alarm indication for target over the alarm threshold: Fixed tone, Tone proportional to signal intensity, Single pulse for pinpointing target
- Alarm tone can be selected, continuous and intermittent
- Self-diagnostics signal: intermittent tone
- BT headset (accessory)
- Copies all acoustic indications, with the addition of checking BT connection
Power supply
- AC/DC ext. power adapter: 100 … 240 V~ , 47…63Hz, 50W
- Embedded rechargeable battery
- Up to 16.5 h max of continuous operation with 2.5 h battery charge
- Up to 60 h max of continuous operation with 9 h battery charge
Detector environmental conditions
- Operating temperature: -20°C to +60°C
- Storage temperature: -37°C to +60°C
- Operating temperature during battery charging: 0°C to +40°C
- Relative humidity: 0 to 95%, non-condensing
Weight
- MSD™ Plus: 10 Kg
- Carrying case: 600 g
- AC/DC adapter: 600 g
- Installation kit: 300 g
- BT kit: 450 g (includes battery charger)
MSD™ dimensions
- Height: 1900 mm
- Width: 330 mm
Shipping information
- Dimensions (WxDxH): 400 mm x 2000 mm x 480 mm
- Weight: 24 kg
Degree of protection
- IP65 for indoor and outdoor use
Available accessories
- EVO function activation (88918)
- BT wireless audio function activation. Includes a headset with AC/DC charger (88919)
- BRU Wireless Relay Unit (143764)
- App CEIA FMD+: the application allows monitoring of the device, adjustment of the settings and downloading of data logger:
- Available on Google Play™. Requirements: Android™ 8.0 or later
- Available on Apple store. Requirements: iOS 15.0 or later
- BT interface available
- Solid rubber feet (88917)
- MSD™ Plus Demo Kit (89052): Kit of demonstration objects, consisting of:
- BT wireless headset
- Hair pins
- Hospital pager
- Magnet
- Medical scissors
- Micro cell phone
- Micro smartphone
- Needle
- Razor blades
- Transceiver
- Voice recorder
- MSD™ Plus Maintenance Kit: Set of main spare parts and necessary tools (143750)
- MSD™ Plus Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects (89054)
- MSD™ Plus EVOTM Connecting Cable for synchronization without using BT
- Length 2.7 m (95376)
- Length custom, up to 25 m (95494)
- Standing mat: self-adhesive mat with indication of position and rotation (94590)
Certification & Compliance
- No-emission: safe for use for pacemakers and other medical implants
- Compliant with the applicable electromagnetic Standards on Human Exposure and PMEDs such as glucometers, pacemakers,defibrillators, insulin pumps, neurological stimulators and cochlear implants
- Compliant with and certified to the applicable International Standards for electrical safety and EMC
