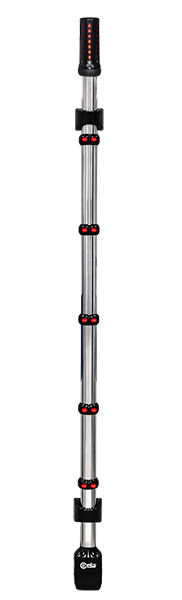

MSDW Plus
Wall-Mounted Multi-Zone Ferromagnetic Detector
MSDW Plus
Wall-Mounted Multi-Zone Ferromagnetic Detector
- Detects concealed ferrous objects in controlled-access environments
- Compact, discreet design for seamless integration
- Multi-zone alarms for fast item localization
- Supports safer screening for staff, visitors, and occupants
Folleto
Manuales
MSDW Plus is a unit specifically designed to detect magnets and ferromagnetic objects that are present in items carried on a person and/or concealed by an object. Its typical application is the installation at the entrance of a safe area, where this type of objects such as cell phones, blades or other potentially dangerous or contraband items are not allowed.
Concealed ferrous metal objects can pose serious safety and security risks in controlled-access environments. The MSDW Plus is a high-sensitivity ferromagnetic detection system designed to identify concealed ferrous objects on individuals before entering secure or restricted areas.

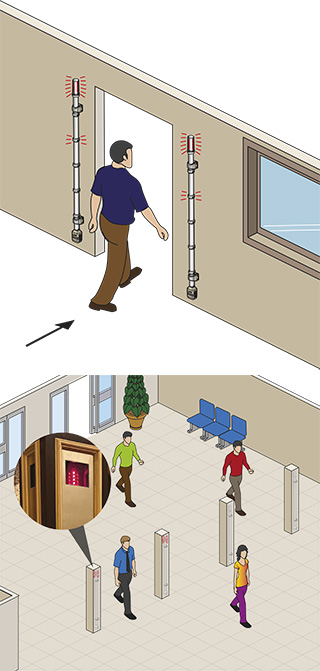

With a compact, discreet design, the system can be integrated into doors, entryways, or existing architectural structures while maintaining efficient access flow and a low-profile appearance. Multi-zone alarm signaling helps security personnel quickly localize detected items for faster secondary screening and improved operational safety.
Download Specifications
Controls and indicators
- Programming of operational parameters and downloading of data logger by smartphone, tablet or portable PC
- Security: Password protected programming at User and Supervisor level
- Color status and alarm warning light
- Power Indicator LED (WHITE)
- Alarm Indicator LED (RED LIGHT)
- Full height alarm indication
- Indication proportional to signal intensity
- Alarm indication with different localization zones
- Blinking light: diagnostics alarm
- Connecting BT device in progress LED (BLUE LIGHT)
- Alarm sounder
- Alarm indication for target over the alarm threshold: Fixed tone, Tone proportional to signal intensity, Single pulse for pinpointing target
- Alarm tone can be selected, continuous and intermittent
- Self-diagnostics signal: intermittent tone
- BT headset (ACCESSORY)
- Copies all acoustic indications, with the addition of checking BT connection
Power supply
- Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
- Via connecting cable to external 24Vdc supply
- Via external AC/DC power adapter [ACCESSORY]
Input/output
- LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
- IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
- Power supply input. Voltage: 24Vdc ±10%, 0.25A max
- RS-232 serial communication lines
- Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
- Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.
Environmental conditions
- Operating temperature -20°C to +60°C
- Storage temperature -37°C to +60°C
- Relative humidity 0 to 95%, non-condensing
Weight
Dimensions
- 90 mm x 73 mm x 1820 mm (WxDxH)
Shipping information
- Dimensions (WxDxH) 200 mm x 160 mm x 2170 mm
- Weight 10 kg
Degree of protection
Available accessories
- BT wireless audio function activation. Includes a headset with AC/DC charger (88919)
- External AC/DC adapter (117021)
- App CEIA FMD+: the application allows monitoring of the device, adjustment of the settings and downloading of data logger:
- Available on Google Play™. Requirements: Android™ 8.0 or later
- Available on Apple store. Requirements: iOS 15.0 or later
- BT interface available
- MSD™X Distribution Box (117022)
- Accessory to be used for the installation of MSDW Plus devices, designed to simplify the connections between detectors and external devices. It allows the connection of a single detector (Chain Head) or both (Chain Head and Chain Tail), in order to have a single power supply source
- Standing mat: self-adhesive mat with indication of position and rotation (94590)
Certification & compliance
- No-emission: safe for use for pacemakers and other medical implants
- Compliant with the applicable electromagnetic Standards on Human Exposure and PMEDs such as glucometers, pacemakers, defibrillators, insulin pumps, neurological stimulators and cochlear implants
- Compliant with and certified to the applicable International Standards for electrical safety and EMC
