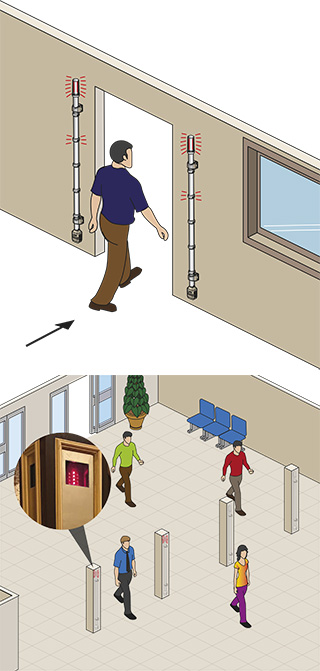

Door Frame - Open Space

Controls and indicators

• Programming of operational parameters and downloading of data logger by smartphone, tablet or portable PC
• Security: Password protected programming at User and Supervisor level
• Color status and alarm warning light
  • Power Indicator LED (WHITE)
  • Alarm Indicator LED (RED LIGHT)
  • Full height alarm indication
  • Indication proportional to signal intensity
  • Alarm indication with different localization zones
  • Blinking light: diagnostics alarm
  • Connecting BT device in progress LED (BLUE LIGHT)
• Alarm sounder
  • Alarm indication for target over the alarm threshold: Fixed tone, Tone proportional to signal intensity, Single pulse for pinpointing target
  • Alarm tone can be selected, continuous and intermittent
  • Self-diagnostics signal: intermittent tone
• BT headset (ACCESSORY)
  • Copies all acoustic indications, with the addition of checking BT connection

Power supply

• Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
• Via connecting cable to external 24Vdc supply
• Via external AC/DC power adapter [ACCESSORY]

Input/output

• LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
• IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
  • Power supply input. Voltage: 24Vdc ±10%, 0.25A max
  • RS-232 serial communication lines
  • Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
  • Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.

Environmental conditions

• Operating temperature -20°C to +60°C
• Storage temperature -37°C to +60°C
• Relative humidity 0 to 95%, non-condensing

Weight

• 3.5 kg (Detector)

Dimensions

• 90 mm x 73 mm x 1820 mm (WxDxH)

Shipping information

• Dimensions (WxDxH) 200 mm x 160 mm x 2170 mm
• Weight 10 kg

Degree of protection

• IP55

Available accessories

• BT wireless audio function activation. Includes a headset with AC/DC charger (88919)
• External AC/DC adapter (117021)
• App CEIA FMD+: the application allows monitoring of the device, adjustment of the settings and downloading of data logger:
  • Available on Google Play™. Requirements: Android™ 8.0 or later
  • Available on Apple store. Requirements: iOS 15.0 or later
  • BT interface available
• MSD^™X Distribution Box (117022)
  • Accessory to be used for the installation of MSDW Plus devices, designed to simplify the connections between detectors and external devices. It allows the connection of a single detector (Chain Head) or both (Chain Head and Chain Tail), in order to have a single power supply source
• Standing mat: self-adhesive mat with indication of position and rotation (94590)

Certification & compliance

• No-emission: safe for use for pacemakers and other medical implants
• Compliant with the applicable electromagnetic Standards on Human Exposure and PMEDs such as glucometers, pacemakers, defibrillators, insulin pumps, neurological stimulators and cochlear implants
• Compliant with and certified to the applicable International Standards for electrical safety and EMC
